Routing 개요
- Routing은 OSI 7 Layer에서 Network Layer 즉 3계층에서 수행되는 과정
- 네트워크 주소인 IP 주소를 이용하여 목적지까지 전달하기 위한 경로 선택 과정
- 해당 과정은 Routing Table을 통해 경로를 지정할 수 있으며, Routing 우선순위를 설정할 수 있음
- 다중 네트워크 인터페이스를 사용할 경우 우선순위에 따라 원하는 통신이 안될 수도 있음

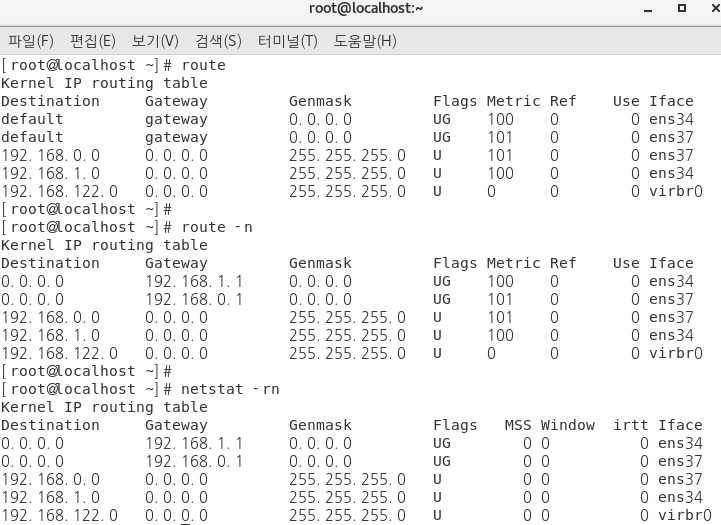

Routing Table 확인
- 보통 아래 3가지 명령어로 확인
# route
# route -n
# netstat -rn
- Destination: 목적지, 네트워크 대역 or 호스트 주소, 0.0.0.0은 모든 대역
- Gateway: 게이트웨이 주소
- Genmask: 목적지의 넷마스크
- Flags: U=라우팅 가능, H=목적지가 호스트, G=해당 게이트웨이를 경유
- Metric: 여러 경로 중 최적의 경로 설정 (우선순위), 숫자가 낮을수록 우선순위 높음
- Ref: 경로 참조 횟수
- Use: 경로 검사 횟수
- Iface: 패킷을 보낼 네트워크 인터페이스
Routing Table 형식
Inbound Routing 추가/삭제
# route [add/del] [-net/-host] <Destination address> netmask <netmask address> gw (gateway ip) dev <interface> metric (1~9999)
- [add/del]: 추가/삭제
- [-net/-host]: 네트워크 대역/호스트
- netmask <netmask address>: genmask 설정
- gw (gateway ip): 경로할 Gateway 주소, 생략 시 0.0.0.0 설정
- dev <interface>: Network Interface 이름
- metric (1~9999): 우선 순위 설정, 생략 시 0 설정
* [ ] = 선택 <> = 필수 ( ) = 생략가능
Default Routing
- Routing Table에 매칭된 경로가 없는 경우 마지막 경로인 Default Routing을 사용
- Default Routing 경로는 보통 Destination이 0.0.0.0이며, 모든 대역을 의미
Outbound Routing 추가/삭제
# route [add/del] default gw <gateway ip> dev (interface) metric (1~9999)
- [add/del]: 추가/삭제
- default : Default route 즉 Destination 0.0.0.0 설정
- gw <gateway ip>: 경로할 Gateway 주소
- dev (interface): Network Interface 이름, 생략 시 해당 대역에 맞는 Interface 설정
- metric (1~9999): 우선 순위 설정, 생략 시 0 설정
# route [add/del] [-net/-host] <Destination address> netmask <netmask address> gw <gateway ip> dev (interface) metric (1~9999)
- [add/del]: 추가/삭제
- [-net/-host]: 네트워크 대역/호스트
- netmask <netmask address>: genmask 설정
- gw <gateway ip>: 경로할 Gateway 주소
- dev (interface): Network Interface 이름, 생략 시 해당 대역에 맞는 Interface 설정
- metric (1~9999): 우선 순위 설정, 생략 시 0 설정
Routing Table 예시
- ens34는 내부망과 통신 시 사용 (192.168.1.0/24), 내부망은 외부와 통신 불가능
- ens37은 외부와 통신 시 사용 (192.168.0.0/24)
[Inbound] Routing Table 추가/삭제

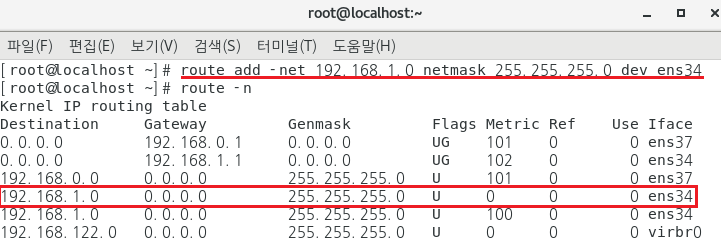

- [inbound] 전 대역의 Gateway에서, 목적지가 192.168.1.0/24의 대역인 경우 Interface ens34로 라우팅 (추가)
# route add -net 192.168.1.0 netmask 255.255.255.0 dev ens34
# route -n

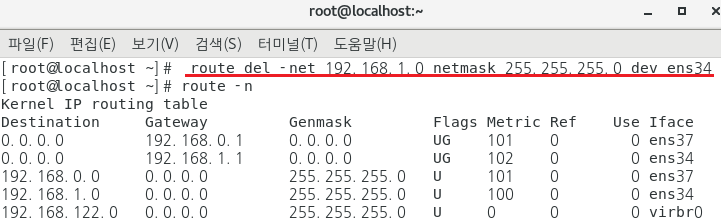

- [inbound] 전 대역의 Gateway에서, 목적지가 192.168.1.0/24의 대역인 경우 Interface ens34로 라우팅 (삭제)
# route del -net 192.168.1.0 netmask 255.255.255.0 dev ens34
# route -n

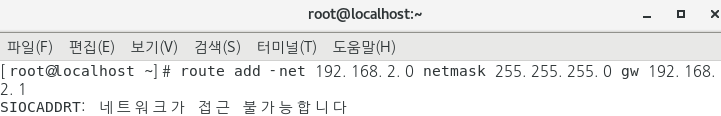

- Routing Tables 추가 시 network 통신이 가능한 Routing만 추가 됨
- 없는 네트워크 대역은 추가 되지 않음
[outbound] Routing Table 추가/삭제
- [outbound] 192.168.0.1의 게이트웨이에서 목적지가 전 대역(Default Routing 0.0.0.0)인 경우 라우팅 (추가)
# route add default gw 192.168.0.1
# route -n

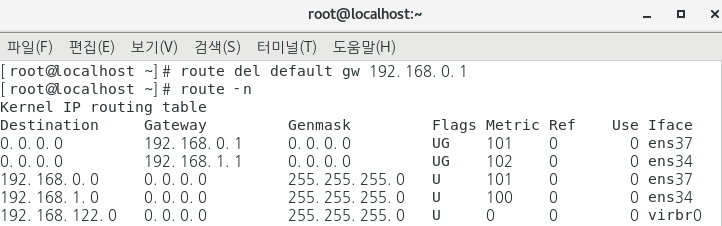

- [outbound] 192.168.0.1의 게이트웨이에서 목적지가 전 대역(Default Routing 0.0.0.0)인 경우 라우팅 (삭제)
# route del default gw 192.168.0.1
# route -n
- [outbound] 목적지가 172.168.0.0/24의 주소인 경우 gw 192.168.1.1을 통해 라우팅 (추가)
# route add -net 172.16.0.0 netmask 255.255.255.0 gw 192.168.1.1
- [outbound] 목적지가 172.168.0.0/24의 주소인 경우 gw 192.168.1.1을 통해 라우팅 (삭제)
# route del -net 172.16.0.0 netmask 255.255.255.0 gw 192.168.1.1
